Automatic filling machine

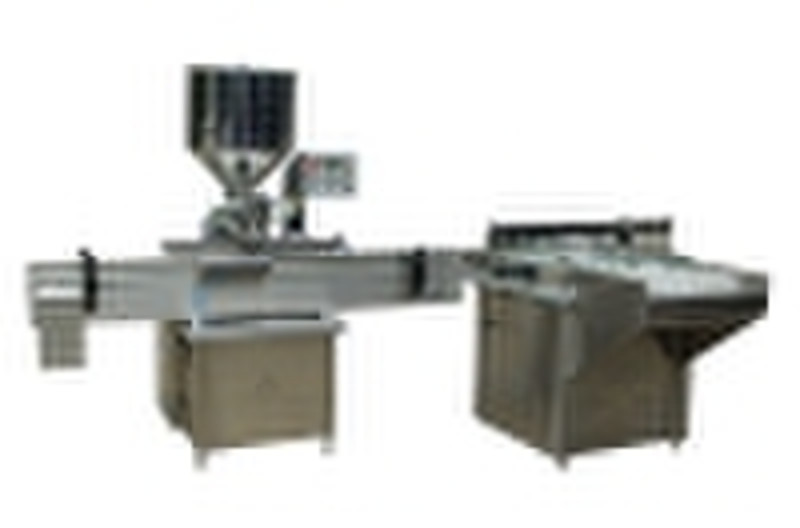

Automatic filling machine Thisfilling machine is specially used for the automatic bottle filling of creamy and liquid materials. It uses compressed air as the power and relies upon an air-path combination to finish bottle-stopping, nozzle lowering, filling, nozzle lifting etc. links. It is set with an electric capacity regulator to have variation of filling dozen more easily, with a secure device to get automatic stop in case the nozzle is resisted when lowering so as not to damage the bottle and make sure of safe production and with a rotary-disk type bottle arranging machine to carry out the fully-auto filling of liquid and cream. This equipment features a reasonably designed system, stable running, accurate filling, low fault rate, without noise during running, a counting function, the stainless steel and PTFE made parts contacting with materials, acid, alkali and high temperature withstand and is really an ideal equipment for the automatic production in the daily chemistry, food, pharmacy etc. trades. Specifications:Filling Materiel Liquid & Cream Filling Range 5-130ml,50-300ml Filling Speed 30-80bottles/min Filling accuracy ±1.5% Working pressure 0.04-0.06Mpa Air consumption 0.03Lite Length of bottle 20-160mm Diameter of bottle 30-80mm Weight 200kg External dimension L1650xW700xH1500mm Specifications of bottle feeder: Voltage 220V Power 90W Diameter of bottles φ800mm Weight 90kg External dimension L1180xW900xH950mm
